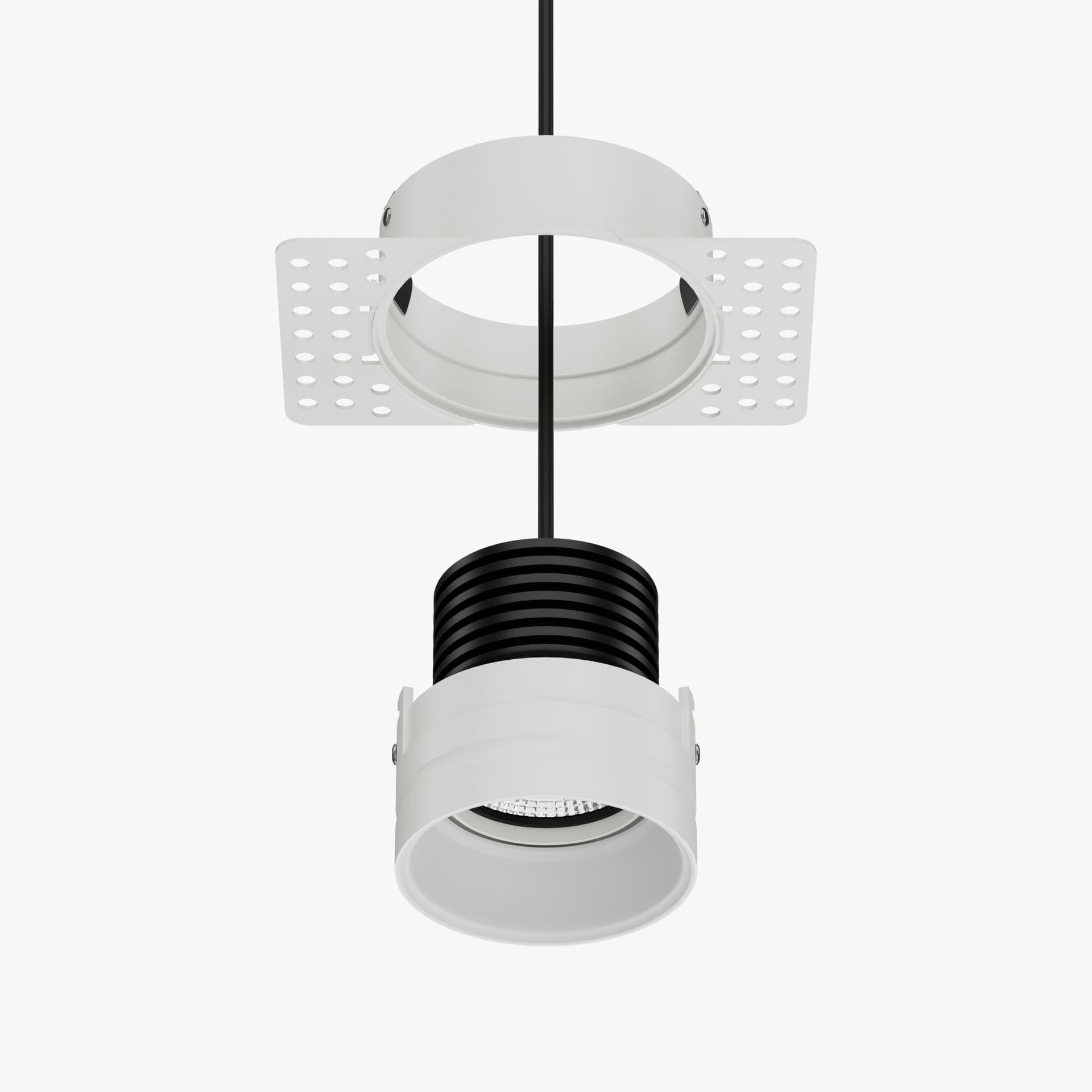

EZ-Frame (Trimless)
Matt white
Our EZ-Frame (Trimless) downlight must be installed before final plaster skim.
Spec Overview
Lamp sold separately
l
Cutout ø85mm
l
IP20 (Indoor Use)
Specifications
Lamp Required
Yes
Lamp Type
GU10 Bulbs or LED Modules
Maximum Lamp Ø
Ø50mm
Dimmable
Lamp Dependent
IP_Rating
IP20
Warranty
Lamp Dependent

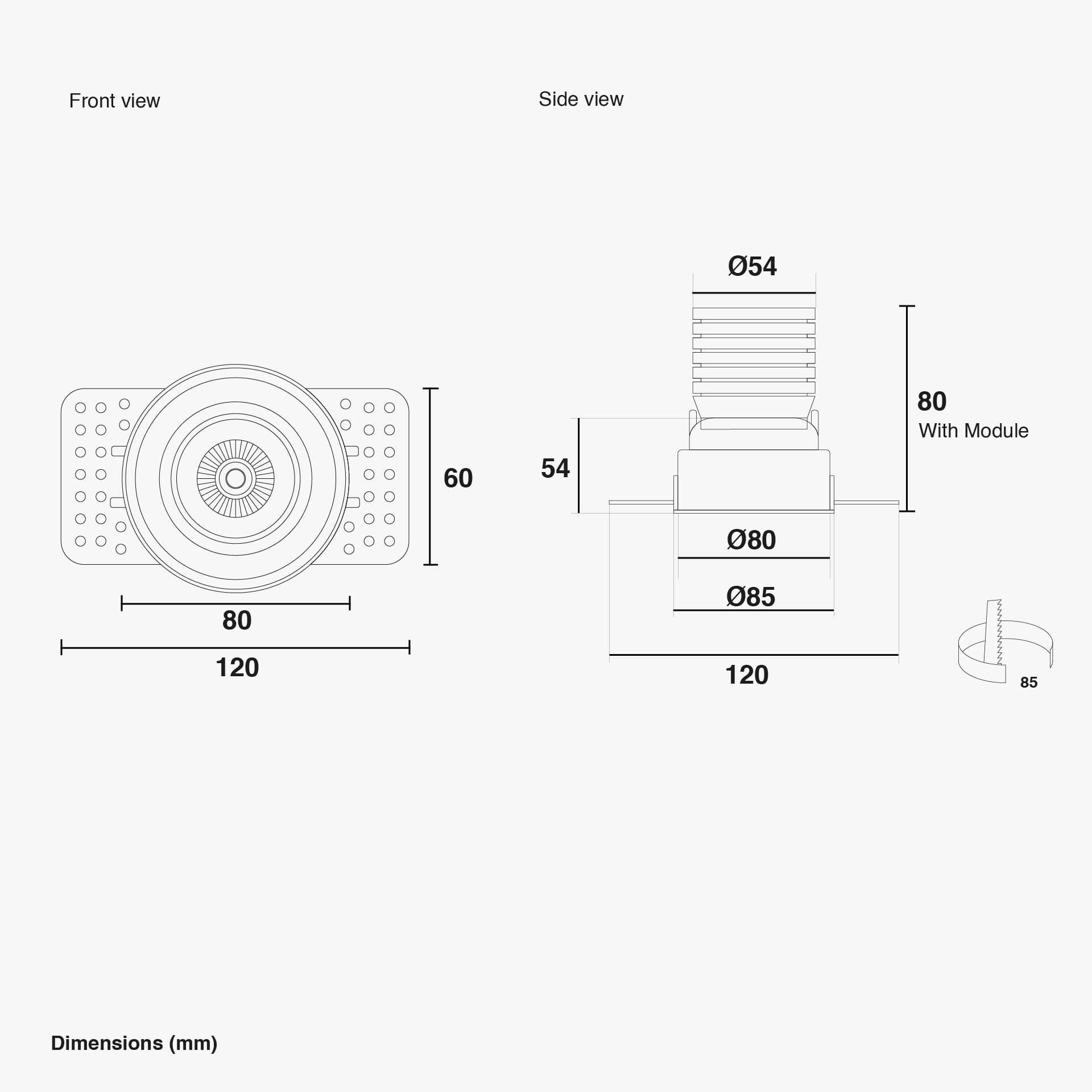

Diameter
Ø80mm
Frame Wingspan (mm)
L120 x W60
Hole Saw Ø
Ø85mm
With COB Module
H90mm
With Smart Module
H80mm
With GU10 Bulb
H95mm
